Carte mere ASUS ATX 1366 X58 6DR2000 3PCIE 2I3E 2GL TPM - LEMONDEDUWEB.COM - @LMW
.: Carte mere ASUS ATX 1366 X58 6DR2000 3PCIE 2I3E 2GL TPM :.

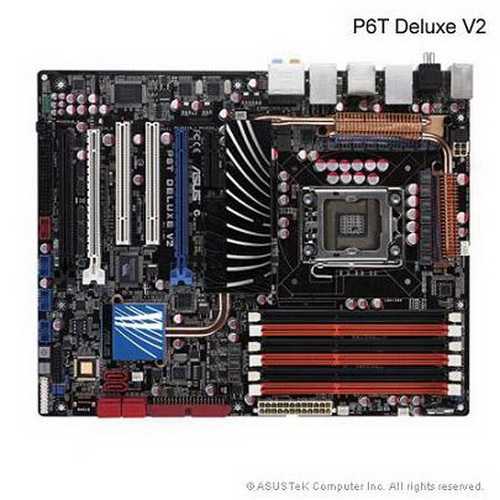

Carte mere ASUS ATX 1366 X58 6DR2000 3PCIE 2I3E 2GL TPM
Carte mere ASUS ATX 1366 X58 6DR2000 3PCIE 2I3E 2GL TPM

Format : ATX / Processeur : INTEL Core i7 series
Socket : LGA 1366 / Chipset : X58+ICH10R
QPI : jusqu'à 6.4GT/s
Mémoire : Triple Canaux DDR3 DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066





Ce produit n'est plus en vente

Format : ATX
Processeur : INTEL Core i7 series
Socket : LGA 1366
Chipset : X58+ICH10R
QPI : jusqu'à 6.4GT/s
Mémoire : Triple Canaux DDR3 DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066
Slot expansion : 3PCIe 2.0 x16, 1PCIe x4, 2PCI


POINTS FORTS

- Meilleur plateforme pour processeur Intel Core i7!
- Performance d'overclocking EXTREME
- Socket Intel LGA 1366
- Chipset Intel X58
- RAM Triple canal DDR3-2000 max (en OC)
- Véritable design d'alimentation 16+2 phase
- Technologie Asus TurboV
- Technologie Asus EPU
- Technologie Asus Express Gate SSD
- Support technologie SLI et CrossFire
- Condensateur de fabrication nippone
VRM 5000hrs lifespan @105°C, 500,000hrs @65°C


CARACTERISTIQUES TECHNIQUES

Modèle
P6T Deluxe V2

CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology

Chipset
Intel® X58 / ICH10R

System Bus
Up to 6400 MT/s

Memory
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM (DDR3 1800MHz or above) support is subject to the physical characteristics of individual CPUs.
**Refer to www.asus.com. Or user manual for the Memory QVL (Qualified Vendor Lists.)

Expansion Slots
3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode)
1 x PCIe x4
2 x PCI

Multi-GPU Support
Supports NVIDIA® 2-Way or Quad-GPU SLI™ Technology
Supports ATI® CrossFireX™ Technology

Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID Support RAID
Marvell 88SE6111
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA (SATA On-the-Go)

LAN
Dual Gigabit LAN controllers 2*Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2

Audio
ADI® AD2000B 8 -Channel High Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O

IEEE 1394
VIA® VT6308 controller supports 1 x 1394a ports (one at mid-board; one at back panel)

USB
14 USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)

ASUS Unique Features
ASUS Exclusive Features:
- ASUS TurboV
- ASUS True 16+2 Phase Power Design
- Express Gate SSD
ASUS Power Saving Solution
- ASUS EPU-6 Engine
- ASUS AI Nap
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Wind-Flow Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Fan Xpert
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

Overclocking Features
ASUS TurboV utility
Precision Tweaker2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vCPU PLL: 36-step reference voltage control
- vDRAM Bus: 49-step DRAM voltage control
- vChipset(N.B.): 31-step chipset voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- Internal Base Clock tuning from 100MHz up to 500MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)

Special Features
Multi-language BIOS
ASUS MyLogo 2

Back Panel I/O Ports
1 x PS/2 Keyboard/ Mouse combo port
1 x S/PDIF Out (Coaxial + Optical)
1 x External SATA
1 x IEEE1394a
2 x RJ45 port
8 x USB 2.0/1.1
8-channel Audio I/O

Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
3 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)

BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3




Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Accessories
UltraDMA 133/100/66 cable
6 x Serial ATA cables
ASUS Q-Shield
User's manual
2 in 1 Q-connector
1 x 2-port USB2.0 / 1-port IEEE1394 (4-pin) module
1 x SLI bridge cable
2 x Screw pillar
1 x Optional Fan for Water-Cooling or Passive-Cooling only

Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
ASUS AI utility
Image-Editing Suite

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
